Woven fabric Woven fabric
Geomembrane Geomembrane

Hdpe Geomembrane

Short Description:

Product Features: They have strong ability for waterproof,anti seepage and isolation, aging resistance, good welding performance, convenien……

Product Detail

Product Features:

They have strong ability for waterproof,anti seepage and isolation, aging resistance, good welding performance, convenient construction, root resistance and other characteristics. They are mainly used in aquaculture,sewage treatment pond,river embankment reservoir, channels, lake dam, subway, landfill liners and so on.

Anti seepage:

Corrosion resistance,waterproof

Firm:High tensile strength and elongation,Excellent stress cracking resistance property

Long lasting:Stable in chemical structure,anti aging, anti oxidizing,UV resistant

Safe:No taste,no poison,not dissolve with acid,alkali, salt or organic solvent



Surface details:

Woven fabric Technical Parameters:

Spec

Properties

Test method ASTM



GMS 0.5



GMS0.75



GMS 1.0



GMS1.25



GMS1.5



GMS2.0

Thickness

D5199

0.5mm

0.75mm

1.00mm

1.25mm

1.50mm

2.00mm

Density (≥ g/cc)

D1505

0.96

0.96

0.96

0.96

0.96

0.96

Tensile Properties(Each direction)(≥)
●Yield strength
●Break strength
●Yield elongation
●break elongation

D 6693

Type IV

8 KN/m

14 KN/m

12%

700%

11 KN/m

20 KN/m

12%

700%

15KN/m

27 KN/m

12%

700%

18 KN/m

33 KN/m

12%

700%

22 KN/m

40 KN/m

12%

700%

29 KN/m

53 KN/m

12%

700%

Tear Resistance(≥)

D 1004

64 N

93 N

125 N

156 N

187 N

249 N

Puncture Resistance(≥)

D 4833

160 N

240 N

320 N

400 N

480 N

640 N

Stress Crack Resistance(≥)

D 5397

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

300 hr.

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Oxidative Induction Time(OIT) (≥)(a) Standard OIT-or- (b)High Pressure OIT

D 3895



D 5885

100 min



400 min

100 min



400 min

100 min



400 min

100 min



400 min

100 min



400 min

100 min



400 min

Geotextile

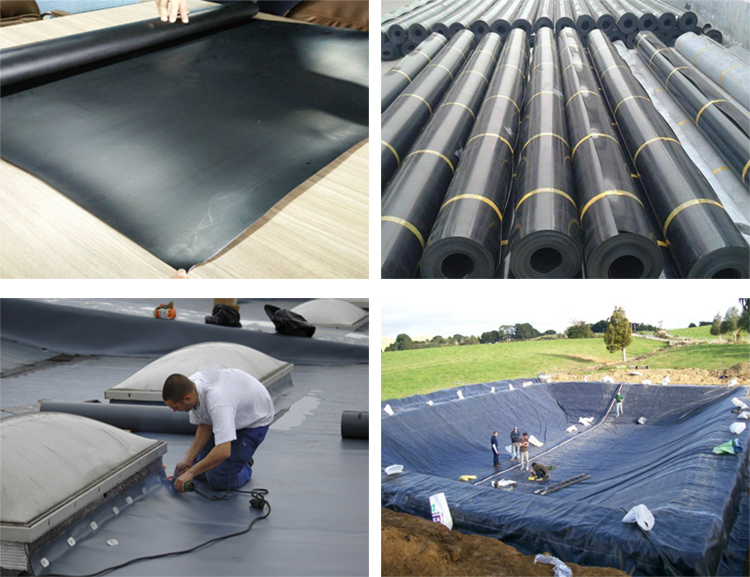

Application:
